TVP5150PBS - Texas Instruments

Description: Video Decoder 1 ADC 9bit 32-Pin TQFP Tray

Download TVP5150PBS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

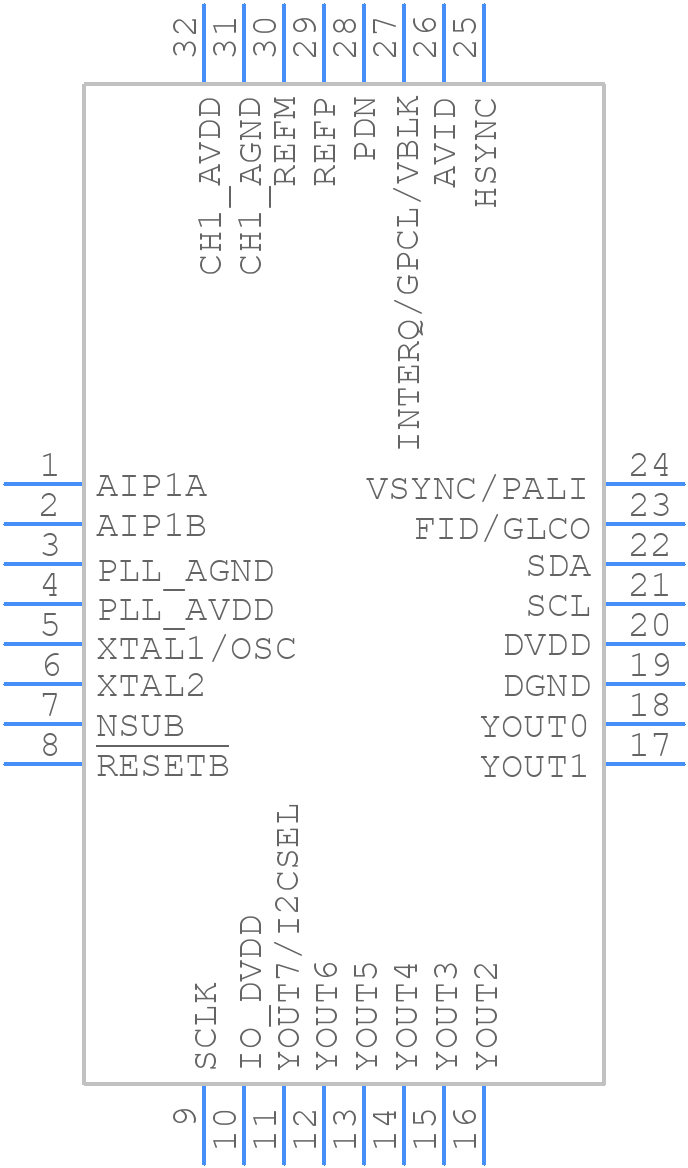

Symbol
TVP5150PBS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVP5150PBS - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PBS (S-PQFP-G32
click to zoom
3D Models
TVP5150PBS - Texas Instruments - 3D model - Quad Flat Packages - PBS (S-PQFP-G32
click to zoom

TVP5150PBS Details

  • Manufacturer Part Number:

    TVP5150PBS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC; SECAM

  • Width:

    5 mm

TVP5150PBS Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog power pins (AVDD and DVDD) first, followed by the digital power pins (DVDD and VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The TVP5150PBS can be configured for different video standards (e.g. NTSC, PAL, SECAM) by setting the appropriate registers and pins. Refer to the datasheet and application notes for specific configuration details.
  • The TVP5150PBS supports clock frequencies up to 27 MHz. However, the maximum clock frequency may vary depending on the specific application and video standard being used.
  • The TVP5150PBS has analog video input signals that require proper termination and filtering to ensure signal integrity. Refer to the datasheet and application notes for specific guidelines on handling analog video input signals.
  • Yes, the TVP5150PBS can be used in an MCM design. However, special care must be taken to ensure proper signal routing, power distribution, and thermal management in the MCM design.
