The recommended power-up sequence is to apply power to the analog power pins (VAA and VDD) first, followed by the digital power pins (VDDIO). This ensures that the analog circuitry is powered up before the digital circuitry.
The TVP5150PBSR can be configured for different video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, clock frequency, and video mode. Refer to the datasheet for the specific register settings for each format.
The maximum cable length supported by the TVP5150PBSR depends on the video input format and the quality of the cable. As a general guideline, the device can support cable lengths of up to 100 meters for SD-SDI and up to 50 meters for HD-SDI. However, it's recommended to use cables that meet the SMPTE 292M and 259M standards for optimal performance.
To troubleshoot video signal issues with the TVP5150PBSR, start by checking the video input signal quality using an oscilloscope or a video signal analyzer. Verify that the input signal meets the device's specifications and that the clock frequency is correct. Also, check the device's registers to ensure that the video input format is correctly configured. If the issue persists, try resetting the device or checking for any firmware updates.
Yes, the TVP5150PBSR can be used in a multi-channel video application. The device has a single video input port, but it can be used in conjunction with other TVP5150PBSR devices or with a video multiplexer to support multiple video channels. However, the device's power consumption and heat dissipation should be considered when designing a multi-channel video application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TVP5150PBSR Overview

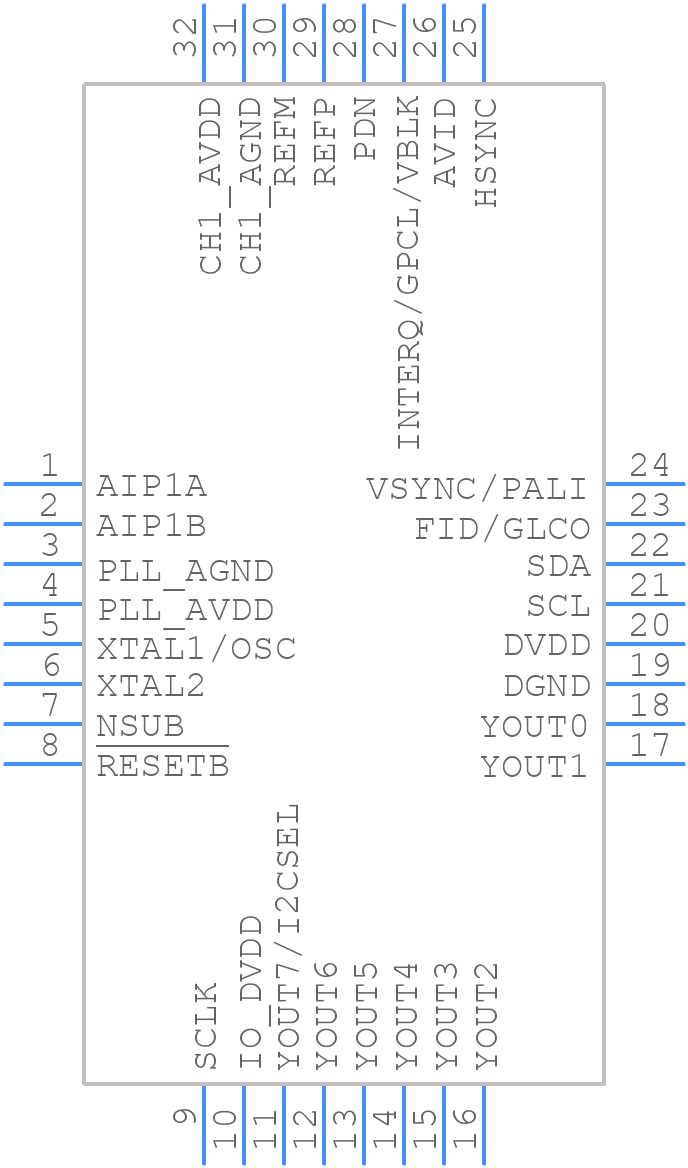

Use the download button to access the TVP5150PBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP51,
or try a keyword search, such as Color Signal Converters
