TVP5154APNP - Texas Instruments

Description: Video Decoder 4ADC 9bit 128-Pin HTQFP EP Tray

Download TVP5154APNP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TVP5154APNP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

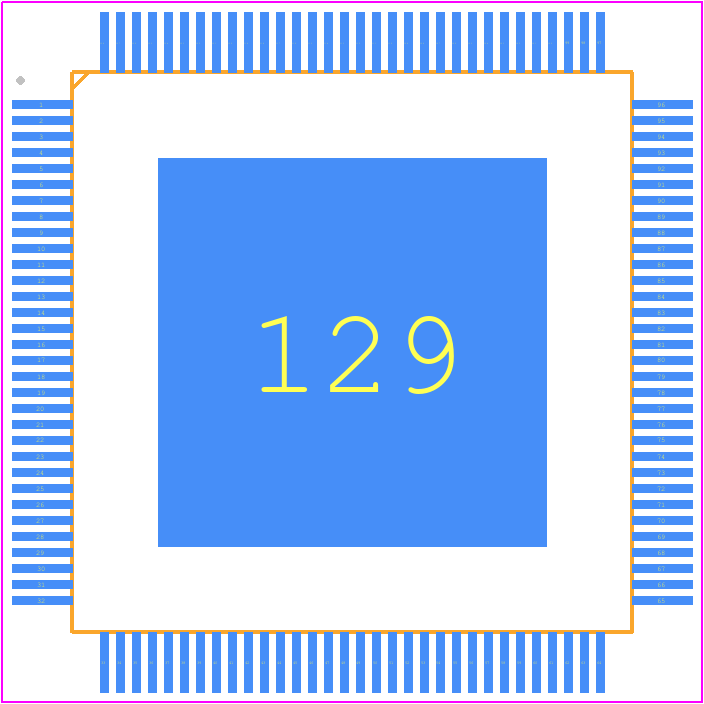

TVP5154APNP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PNP (S-PQFP-G128)
click to zoom
3D Models
TVP5154APNP - Texas Instruments - 3D model - Quad Flat Packages - PNP (S-PQFP-G128)
click to zoom

TVP5154APNP Details

  • Manufacturer Part Number:

    TVP5154APNP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 3.3V I/O SUPPLY

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G128

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    174 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC; SECAM

  • Width:

    14 mm

TVP5154APNP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The TVP5154APNP can be configured for different video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, clock frequency, and sync polarity. Consult the datasheet for the specific register settings required for your desired video input format.
  • The TVP5154APNP supports clock frequencies up to 74.25 MHz, which is sufficient for most standard definition and high definition video formats.
  • The TVP5154APNP has a built-in thermal shutdown feature that disables the device when it exceeds a certain temperature threshold. To handle this feature, ensure that the device is properly heat-sinked and that the thermal shutdown pin (TSD) is connected to a suitable pull-up resistor. The TSD pin can also be used to monitor the device temperature and take corrective action if necessary.
  • The TVP5154APNP is a high-speed device that requires careful layout and routing to minimize noise and signal degradation. Ensure that the device is placed close to the video input connectors, and that the analog and digital signals are separated and routed accordingly. Use a solid ground plane and decouple the power supplies to minimize noise and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TVP5154APNP Overview

Use the download button to access the TVP5154APNP schematic symbol, PCB footprint, and 3D model.
