FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
174 mA
Supply Voltage-Max (Vsup):
1.95 V
Supply Voltage-Min (Vsup):
1.65 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Video Standard:
PAL; NTSC; SECAM
Width:
14 mm
TVP5154PNP Frequently Asked Questions (FAQs)
The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
The TVP5154PNP can be configured for different video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, clock frequency, and sync polarity. Refer to the datasheet for the specific register settings for each format.
The maximum cable length supported by the TVP5154PNP depends on the video input format and the quality of the cable. As a general guideline, the device can support cable lengths of up to 100 meters for SD-SDI, 50 meters for HD-SDI, and 20 meters for 3G-SDI. However, it's recommended to use high-quality cables and to follow proper cable termination and routing practices to ensure signal integrity.
To troubleshoot video signal issues with the TVP5154PNP, start by checking the video input signal quality using an oscilloscope or a video signal analyzer. Verify that the input signal meets the device's specifications and that the clock frequency and sync polarity are correct. Also, check the device's status registers to see if there are any error flags set. If the issue persists, try resetting the device or re-configuring the video input format.
The TVP5154PNP is designed to support standard video input formats such as SD-SDI, HD-SDI, and 3G-SDI. However, it may be possible to use the device with non-standard video input formats by customizing the device's configuration registers. Contact Texas Instruments support for more information and guidance on customizing the device for non-standard formats.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TVP5154PNP Overview

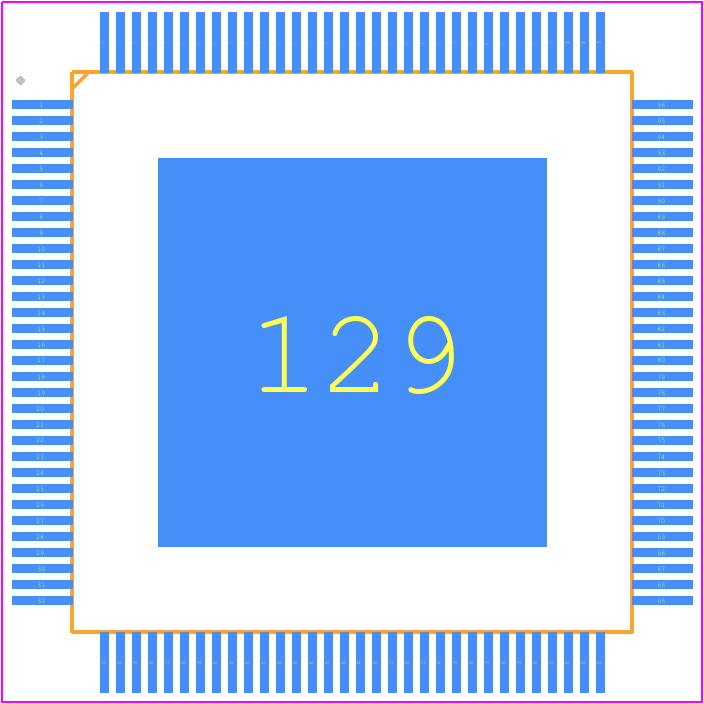

Use the download button to access the TVP5154PNP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP51,
or try a keyword search, such as Color Signal Converters
