TVP5158IPNP - Texas Instruments

Description: Four-Channel NTSC/PAL Video Decoders

Download TVP5158IPNP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TVP5158IPNP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

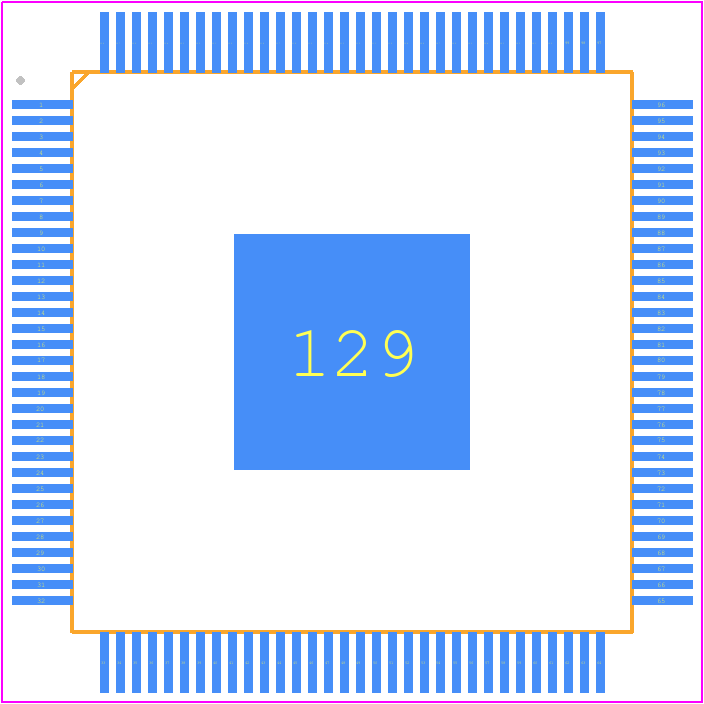

TVP5158IPNP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PNP(S-PQFP-G128)
click to zoom
3D Models
TVP5158IPNP - Texas Instruments - 3D model - Quad Flat Packages - PNP(S-PQFP-G128)
click to zoom

TVP5158IPNP Details

  • Manufacturer Part Number:

    TVP5158IPNP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    128

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 1.8 V AND 3.6 V SUPPLY

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Input Type:

    R-Y; B-Y; Y

  • JESD-30 Code:

    S-PQFP-G128

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP128,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.2 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC; SECAM

  • Width:

    14 mm

TVP5158IPNP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (AVDD) first, followed by the digital supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The TVP5158IPNP can be configured for different video input formats using the I2C interface. The device has a set of registers that can be programmed to select the input format, such as NTSC, PAL, or SECAM. Refer to the datasheet for the specific register settings for each format.
  • The TVP5158IPNP supports clock frequencies up to 27 MHz. However, the recommended clock frequency is 24 MHz for most video formats.
  • The TVP5158IPNP provides a digital video output in ITU-R BT.656 format. This output can be connected to a digital video encoder or a video processor for further processing. The output format can be configured using the I2C interface.
  • The power consumption of the TVP5158IPNP depends on the operating mode and the clock frequency. In typical operating conditions, the power consumption is around 250 mW. However, this can vary depending on the specific application and usage.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TVP5158IPNP Overview

Use the download button to access the TVP5158IPNP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TVP51, or try a keyword search, such as Color Signal Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
