TVS1800DRVR - Texas Instruments

Description: 18V Flat-Clamp Surge Protection Device

Download TVS1800DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

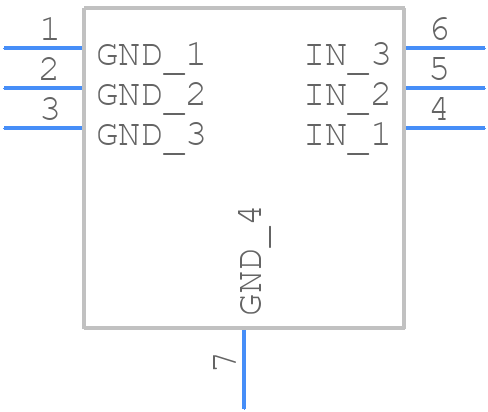

TVS1800DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVS1800DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV000
click to zoom
3D Models
TVS1800DRVR - Texas Instruments - 3D model - Small Outline No-lead - DRV000
click to zoom

TVS1800DRVR Details

  • Manufacturer Part Number:

    TVS1800DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-22

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Breakdown Voltage-Max:

    23.8 V

  • Breakdown Voltage-Min:

    21.3 V

  • Breakdown Voltage-Nom:

    21.3 V

  • Clamping Voltage-Max:

    23.8 V

  • Configuration:

    COMPLEX, 1 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    960 W

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5; IEC-61643-321

  • Rep Pk Reverse Voltage-Max:

    18 V

  • Reverse Current-Max:

    0.013 µA

  • Reverse Test Voltage:

    18 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TVS1800DRVR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane and a separate power plane for the TVS1800DRVR. The device should be placed close to the protected circuitry, and the PCB traces should be as short as possible to minimize inductance.
  • Choose the correct TVS1800DRVR based on the voltage rating, power rating, and response time required for your application. Consider factors such as the maximum voltage, current, and power dissipation of your circuit, as well as the desired level of protection.
  • The maximum operating temperature for the TVS1800DRVR is 125°C. However, the device can operate up to 150°C for short periods of time during fault conditions.
  • Yes, the TVS1800DRVR is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is designed to withstand the harsh conditions of automotive and industrial environments.
  • Follow the recommended soldering profile and use a solder with a melting point below 260°C. Ensure the PCB is clean and free of oxidation, and use a soldering iron with a temperature-controlled tip to prevent overheating the device.
