TVS1801DRBR - Texas Instruments

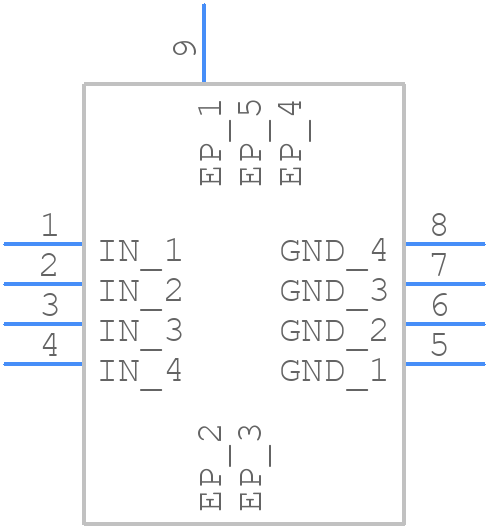

TVS1801DRBR Details

• Manufacturer Part Number:

  TVS1801DRBR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Breakdown Voltage-Min:

  23.35 V

• Breakdown Voltage-Nom:

  24.4 V

• Clamping Voltage-Max:

  27.4 V

• Configuration:

  COMPLEX, 1 CHANNEL

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e4

• Moisture Sensitivity Level:

  2

• Non-rep Peak Rev Power Dis-Max:

  825 W

• Number of Elements:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  BIDIRECTIONAL

• Reference Standard:

  IEC-61000-4-2, 4-4, 4-5; IEC-61643-321

• Rep Pk Reverse Voltage-Max:

  18 V

• Reverse Current-Max:

  0.008 µA

• Reverse Test Voltage:

  18 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
