TVS2700DRVR - Texas Instruments

Description: 27V Flat-Clamp Surge Protection Device

Download TVS2700DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

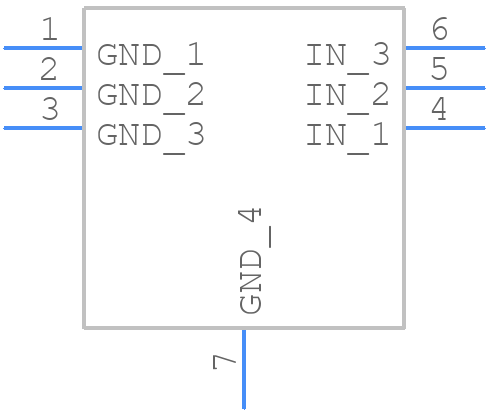

TVS2700DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TVS2700DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A_
click to zoom
3D Models
TVS2700DRVR - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A_
click to zoom

TVS2700DRVR Details

  • Manufacturer Part Number:

    TVS2700DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-22

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Breakdown Voltage-Max:

    33.9 V

  • Breakdown Voltage-Min:

    31.2 V

  • Breakdown Voltage-Nom:

    31.2 V

  • Clamping Voltage-Max:

    33 V

  • Configuration:

    COMPLEX, 1 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    0.65 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    1250 W

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5; IEC-61643-321

  • Rep Pk Reverse Voltage-Max:

    27 V

  • Reverse Current-Max:

    0.06 µA

  • Reverse Test Voltage:

    27 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TVS2700DRVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TVS2700DRVR involves placing the device close to the protected circuit, using short traces, and minimizing the loop area to reduce EMI. A 4-layer PCB with a solid ground plane is recommended.
  • Choose a TVS2700DRVR with a voltage rating that matches or exceeds the maximum voltage in your system. Consider the power rating, response time, and clamping voltage to ensure the device can handle the expected surge currents and voltages.
  • The TVS2700DRVR can handle surge currents up to 100A (8/20μs waveform) and 50A (10/1000μs waveform) depending on the specific device variant and package.
  • The TVS2700DRVR is designed to respond to both fast-rising (e.g., lightning strikes) and slow-rising (e.g., power cross) surges. It can clamp voltages up to its rated voltage and absorb surge energies up to its rated power.
  • Yes, you can use multiple TVS2700DRVR devices in parallel to increase the overall surge current handling capability and improve system reliability. However, ensure that the devices are properly matched and the PCB layout is designed to minimize voltage drops and thermal issues.
