Panasonic provides a recommended PCB layout and land pattern in their application notes or relay mounting instructions. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
To ensure proper relay operation, it's crucial to provide a clean and stable drive signal. This includes using a suitable driver circuit, selecting the correct drive voltage, and ensuring the drive current is within the recommended specifications. Additionally, consider using a snubber circuit to reduce electromagnetic interference (EMI) and voltage transients.
The expected lifespan of the TX2-L2-24V-TH relay is typically around 100,000 to 200,000 cycles, depending on the operating conditions. To extend its lifespan, ensure proper drive and control, avoid excessive voltage or current stress, and operate the relay within its recommended specifications. Regular maintenance, such as cleaning and inspecting the relay, can also help prolong its lifespan.
To handle relay coil suppression and voltage transients, consider using a diode or a snubber circuit across the relay coil. This helps to absorb the back-EMF generated during switching and reduces the risk of voltage transients and EMI. Additionally, ensure the relay is properly driven and controlled to minimize the risk of voltage transients.
The TX2-L2-24V-TH relay has a maximum operating temperature of 85°C. To ensure proper heat dissipation, consider the relay's thermal resistance, PCB layout, and airflow. Ensure the relay is mounted on a suitable heat sink or thermal pad, and provide adequate clearance around the relay to allow for airflow. Avoid blocking the airflow or obstructing the heat sink to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2-L2-24V-TH Overview

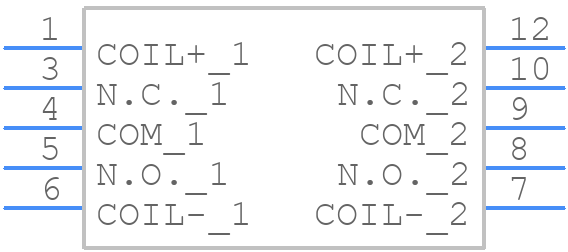

Use the download button to access the TX2-L2-24V-TH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2-L,
or try a keyword search, such as Power/Signal Relays
