Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
To ensure proper relay operation, it's crucial to follow the recommended drive circuit and control methodology outlined in the datasheet or application notes. This includes selecting the correct driver IC, setting the appropriate drive voltage and current, and implementing proper timing and sequencing.
To prevent voltage surges and electromagnetic interference (EMI), it's essential to implement proper coil suppression and surge protection measures, such as adding a freewheeling diode, snubber circuit, or transient voltage suppressor (TVS) diode.
Contact bounce is a common issue in relays, causing multiple on/off transitions. To mitigate this, engineers can implement debouncing techniques, such as using a capacitor to filter out the bounce, or using a debouncing IC or software-based debouncing algorithms.
To ensure reliable operation, it's essential to consider thermal management. This includes providing adequate airflow, using thermal interfaces or heat sinks, and following Panasonic's recommended operating temperature range and derating guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2-L2-5V-1 Overview

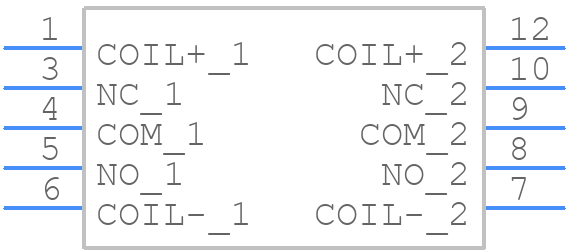

Use the download button to access the TX2-L2-5V-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2-L,
or try a keyword search, such as Power/Signal Relays
