The recommended storage condition for the TX2-LT-12V-TH is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 70%.
While the TX2-LT-12V-TH is designed to be robust, it's recommended to consult with Panasonic's application engineers to determine the suitability of the component for high-vibration environments, as it may require additional testing and validation.
The recommended soldering temperature for the TX2-LT-12V-TH is between 250°C to 260°C, with a soldering time of 3-5 seconds. However, it's recommended to consult the Panasonic application note for specific soldering guidelines.
Yes, the TX2-LT-12V-TH is compatible with lead-free soldering processes, but it's recommended to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
The expected lifespan of the TX2-LT-12V-TH under normal operating conditions is typically in excess of 10 years, but this can vary depending on factors such as operating temperature, voltage, and environmental conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2-LT-12V-TH Overview

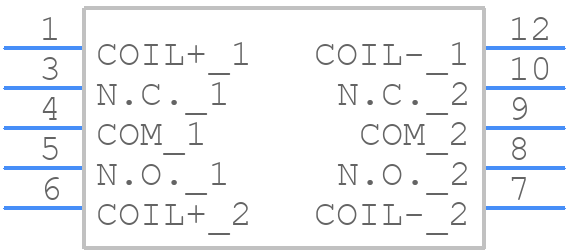

Use the download button to access the TX2-LT-12V-TH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2-L,
or try a keyword search, such as Power/Signal Relays
