Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through their sales representatives. It's essential to follow these guidelines to ensure proper thermal management and electrical performance.
The TX2-LT-12V has a high power density, so proper thermal management is crucial. Ensure good airflow around the component, use a heat sink if necessary, and follow Panasonic's recommended thermal design guidelines. Additionally, consider using thermal interface materials to improve heat transfer between the component and the heat sink.
The derating curve is typically provided in the datasheet or application notes. It shows the maximum allowable current or power dissipation at different ambient temperatures. To apply the derating curve, determine the maximum ambient temperature of your application and use the corresponding derating factor to calculate the maximum allowable current or power dissipation.
The TX2-LT-12V is designed to meet certain vibration and shock standards, but it's essential to review Panasonic's specifications and ensure that the component can withstand the environmental conditions of your application. You may need to add additional mechanical support or consider a different component if the environmental conditions are extreme.
To ensure reliability and longevity, follow proper design and manufacturing guidelines, such as using a clean and dry environment, avoiding overheating, and minimizing electrical stress. Additionally, consider implementing failure detection and protection mechanisms, such as overcurrent protection and thermal monitoring, to prevent damage to the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2-LT-12V Overview

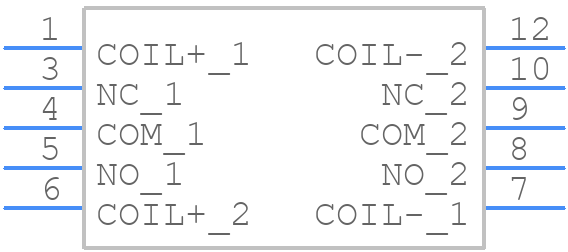

Use the download button to access the TX2-LT-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2-L,
or try a keyword search, such as Power/Signal Relays
