TX2-LT-24V-TH footprint, schematic symbol and 3D model by Panasonic

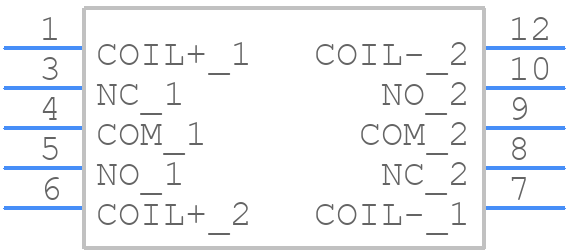

Symbol

click to zoom

PCB Footprints

TX2-LT-24V-TH - Panasonic PCB footprint - Other - Other - TX2-LT-24V-TH-2

click to zoom

3D Models

TX2-LT-24V-TH - Panasonic - 3D model - Other - TX2-LT-24V-TH-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TX2-LT-24V-TH
Part Number TX2-LT-24V-TH
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - TX2-LT-24V-TH-2
Released Date Mar 12, 2024
Last Modified Date Jan 21, 2026 4:45 PM UTC
Pinout / Pin List Click Here (Member Only)

TX2-LT-24V-TH Details

Manufacturer Part Number:
TX2-LT-24V-TH
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Factory Lead Time:
18 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
5.5
Body Breadth:
7.4 mm
Body Height:
8.2 mm
Body Length or Diameter:
15 mm
Coil Current(DC)-Max:
0.006 A
Coil Operate Voltage(DC):
18 V
Coil Power:
140 mW
Coil Release Voltage(DC):
18 V
Coil Resistance:
4114 Ω
Coil Voltage(DC)-Max:
24 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
7.5A@250VAC
Contact Current(AC)-Max:
7.5 A
Contact Current(DC)-Max:
7.5 A
Contact (DC) Max Rating R Load:
7.5A@220VDC
Contact Voltage(AC)-Max:
250 V
Contact Voltage(DC)-Max:
220 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
4 ms
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX; TUBE
Physical Dimension:
15mm x 7.4mm x 8.2mm
Reference Standard:
BSI; CSA; UL
Relay Action:
LATCHED
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
4 ms
Sealing:
WATER PROOF
Surface Mount:
NO
Termination Type:
SOLDER

TX2-LT-24V-TH Frequently Asked Questions (FAQs)

Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and thermal management.
Proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the relay. Also, consider the ambient temperature and heat generated by surrounding components.
Panasonic typically provides a derating curve in the datasheet or application notes. If not, consult with their technical support or a qualified engineer to determine the appropriate derating curve for your specific application.
While the relay is designed to withstand some vibration and shock, it's essential to consult Panasonic's environmental testing data and application notes to ensure the relay can withstand the specific environmental conditions of your application.
Use proper shielding, grounding, and layout techniques to minimize EMI. Consider using a relay with built-in EMI shielding or adding external shielding if necessary. Consult with a qualified engineer or Panasonic's technical support for guidance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TX2-LT-24V-TH Overview

Use the download button to access the TX2-LT-24V-TH schematic symbol, PCB footprint, and 3D model.
