The recommended storage condition for TX2-LT-4.5V-TH is to store them in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 70%. This helps to prevent moisture absorption and ensures the component's reliability.
Yes, the TX2-LT-4.5V-TH is designed to withstand vibrations up to 10Hz to 200Hz, 1.5mm double amplitude, according to IEC 60068-2-6. However, it's recommended to consult with Panasonic's application engineers to ensure the component meets the specific vibration requirements of your application.
To prevent ESD damage, handle the TX2-LT-4.5V-TH with an anti-static wrist strap, mat, or other ESD protection devices. Ensure the workspace is ESD-safe, and avoid touching the component's pins or leads. If you need to store the component, use an anti-static bag or packaging material.
The recommended soldering temperature for TX2-LT-4.5V-TH is 260°C (peak temperature) with a soldering time of 3 seconds to 5 seconds. It's essential to follow the recommended soldering profile to prevent thermal damage to the component.
Yes, the TX2-LT-4.5V-TH is AEC-Q200 qualified, which means it meets the automotive industry's standards for reliability and performance. However, it's recommended to consult with Panasonic's application engineers to ensure the component meets the specific requirements of your automotive application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2-LT-4.5V-TH Overview

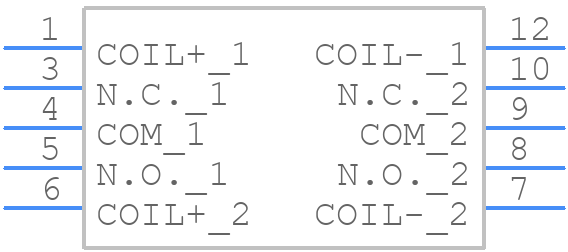

Use the download button to access the TX2-LT-4.5V-TH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2-L,
or try a keyword search, such as Power/Signal Relays
