Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
The TX2SA-L2-12V relay has a high inrush current during switching, which can cause voltage drops or electromagnetic interference (EMI). To mitigate this, consider using a soft-start circuit, inrush current limiter, or a relay with built-in inrush current protection.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to consider the relay's performance in extreme environments, such as high humidity or vibration. Consult with Panasonic or conduct environmental testing to ensure the relay meets your specific requirements.
Regularly cleaning the relay's contacts with a soft brush or compressed air can help prevent contamination. Additionally, consider using a relay with a hermetically sealed or sealed contact structure to minimize the risk of contamination.
The TX2SA-L2-12V relay's lifespan is dependent on various factors, including operating conditions, switching frequency, and load characteristics. Panasonic provides a typical lifespan rating, but it's essential to consider the relay's reliability in your specific application and design for redundancy or fault tolerance if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2SA-L2-12V Overview

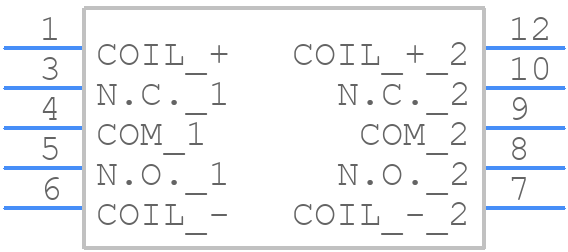

Use the download button to access the TX2SA-L2-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2SA,
or try a keyword search, such as Power/Signal Relays
