Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver IC with built-in current limiting to reduce the inrush current.
The TX2SA-L2-6V-Z relay has an operating temperature range of -40°C to 85°C. Operating the relay outside this range may affect its performance, reliability, and lifespan. Be sure to consider the temperature range in your design and ensure proper heat dissipation.
To ensure clean contacts, handle the relay by the case, avoid touching the contacts, and store the relay in a clean, dry environment. If contamination occurs, use a soft brush or a lint-free cloth to gently clean the contacts. Avoid using chemicals or solvents that may damage the relay.
The TX2SA-L2-6V-Z relay has an expected lifespan of 100,000 to 200,000 cycles, depending on the operating conditions. To extend the lifespan, ensure proper operating conditions, avoid excessive voltage or current, and minimize the number of switching cycles. Regular maintenance and inspection can also help extend the relay's lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2SA-L2-6V-Z Overview

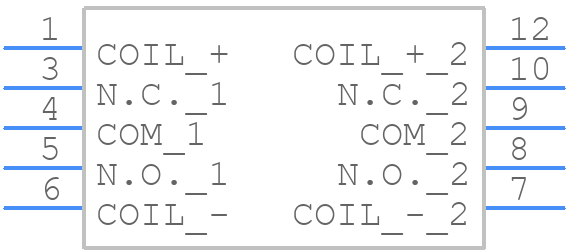

Use the download button to access the TX2SA-L2-6V-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2SA,
or try a keyword search, such as Power/Signal Relays
