Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 100nF) close to the module. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure reliable operation, follow the recommended operating temperature range (–40°C to +85°C), use a heat sink or thermal pad, and ensure good airflow around the module. Additionally, consider derating the output current and voltage according to the temperature derating curve provided in the datasheet.
Panasonic recommends using a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10μF to 22μF, depending on the input voltage and ripple requirements. The capacitor should be placed close to the module's input pins.
Yes, the TX2SA-L2-9V can be used in redundant or parallel configurations, but it's essential to follow Panasonic's guidelines for synchronization and current sharing. Additionally, ensure that the modules are identical and from the same production batch to guarantee consistent performance.
The typical start-up time of the TX2SA-L2-9V is around 10ms to 20ms, and the settling time is approximately 50ms to 100ms, depending on the input voltage, output load, and capacitive load. These times may vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2SA-L2-9V Overview

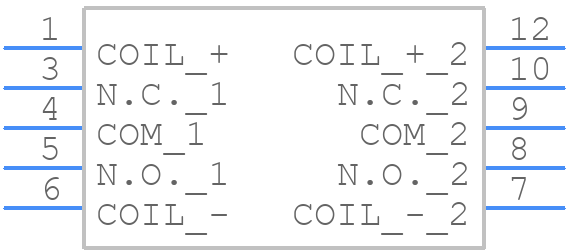

Use the download button to access the TX2SA-L2-9V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2SA,
or try a keyword search, such as Power/Signal Relays
