Panasonic recommends a PCB layout with a minimum of 1mm clearance around the relay module, and a thermal pad or heat sink to dissipate heat. A well-designed PCB layout and thermal management can help reduce thermal resistance and ensure reliable operation.
To ensure reliable switching and minimize contact bounce, Panasonic recommends using a debouncing circuit or a capacitor in parallel with the relay coil to reduce electromagnetic interference (EMI). Additionally, using a clean and stable power supply, and ensuring proper relay module handling and storage can also help.
While the datasheet does not specify a maximum switching frequency, Panasonic recommends a maximum switching frequency of 1 Hz to 10 Hz for this relay module. The duty cycle should be limited to 20% to 80% to ensure reliable operation and prevent overheating.
While the TX2SS-LT-24V-TH relay module is designed to be rugged, it is not specifically designed for high-vibration or high-shock environments. Panasonic recommends using a relay module with a higher vibration and shock rating, such as the TX2SS-HT-24V-TH, for such applications.
To ensure EMC and reduce EMI, Panasonic recommends using a shielded relay module, such as the TX2SS-LT-24V-TH-S, and following proper PCB layout and design guidelines. Additionally, using EMI filters, shielding, and grounding can help reduce EMI and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TX2SS-LT-24V-TH Overview

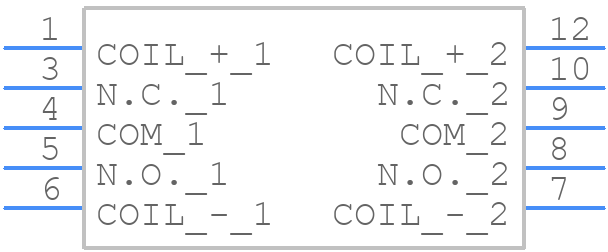

Use the download button to access the TX2SS-LT-24V-TH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TX2SS,
or try a keyword search, such as Power/Signal Relays
