A good PCB layout for the TXB0304RSVR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the TXB0304RSVR, use a high-quality power source with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power and ground pins are connected to a solid power plane and ground plane, respectively.
The TXB0304RSVR has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device within a temperature range of -40°C to 125°C. Use a heat sink or thermal pad if the device is expected to operate in high-temperature environments or under high-power conditions.
To troubleshoot issues with the TXB0304RSVR, start by checking the power supply and decoupling, then verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, the TXB0304RSVR is a high-frequency device and requires proper EMI/EMC design considerations. Use a shielded enclosure, keep the device away from other high-frequency components, and use EMI filters or shielding on the input and output lines if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXB0304RSVR Overview

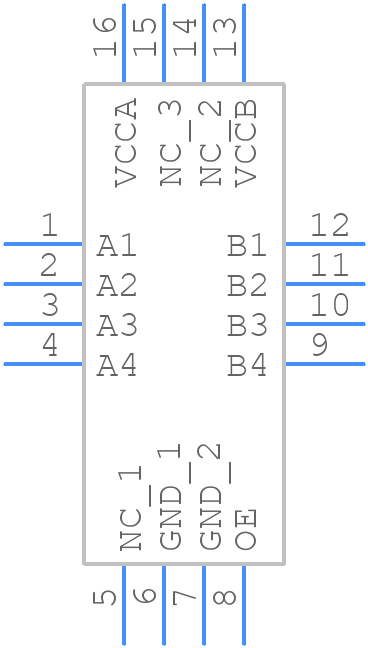

Use the download button to access the TXB0304RSVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXB03,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
