Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
The TXS0206-29YFPRB has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Also, follow the recommended operating temperature range of -40°C to 85°C.
The maximum cable length supported by the TXS0206-29YFPRB depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends keeping cable lengths under 1 meter to minimize signal degradation. However, longer cable lengths may be possible with proper signal conditioning and termination.
To troubleshoot issues with the TXS0206-29YFPRB, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check for proper signal termination and impedance matching. Use an oscilloscope to verify signal integrity and check for noise or distortion. Consult the datasheet and application notes for specific troubleshooting guidelines.
While the TXS0206-29YFPRB is designed for PCIe applications, it can be used in other high-speed applications with proper signal conditioning and termination. However, ensure that the device is operated within its recommended specifications and that the application meets the device's electrical and thermal requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXS0206-29YFPRB Overview

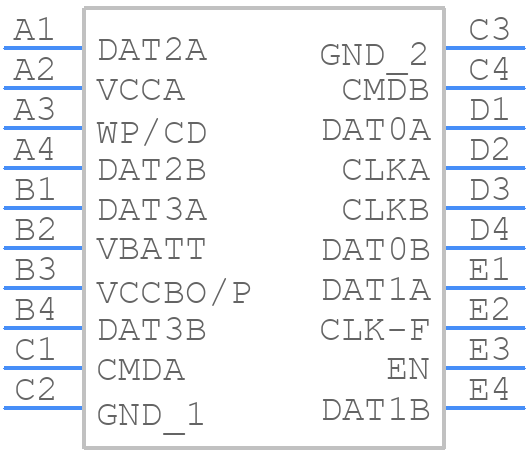

Use the download button to access the TXS0206-29YFPRB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXS02,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
