Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal traces short, using a solid ground plane, and avoiding vias under the device. Additionally, ensure the decoupling capacitors are placed close to the device and connected to the power pins.
The TXS02324RUKR has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow around the device.
The TXS02324RUKR is specified to operate up to 100 MHz, but the actual operating frequency may be limited by the system design, PCB layout, and signal integrity. It's essential to perform signal integrity analysis and simulation to ensure the device operates within its specifications.
Signal integrity is critical for high-speed devices like the TXS02324RUKR. Ensure signal integrity by using controlled impedance traces, minimizing signal reflections, and using termination resistors if necessary. Also, use a signal integrity analysis tool to simulate and optimize the signal path.
The TXS02324RUKR requires a specific power sequencing to ensure proper operation. The VCCIO pin should be powered up before the VCC pin, and the VCC pin should be powered up before the input signals. Ensure the power supplies are stable and within the specified voltage range before applying input signals.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TXS02324RUKR Overview

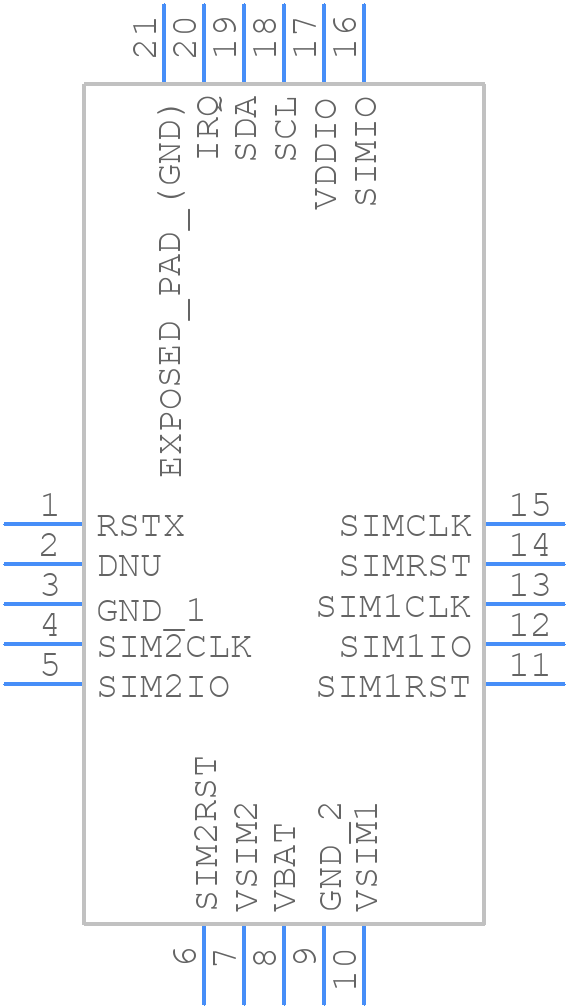

Use the download button to access the TXS02324RUKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXS02,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
