Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
Proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and avoid blocking the ventilation holes on the relay module. Also, consider the ambient temperature and the temperature rise due to self-heating.
Panasonic typically provides a derating curve in their application notes or datasheet. This curve shows the recommended reduction in load current or voltage as the ambient temperature increases. Following this curve ensures reliable operation and prevents overheating.
While the relay module is designed to be robust, it's essential to evaluate its suitability for high-vibration or high-shock environments. Consider using additional mechanical support, such as a bracket or adhesive, and ensure the PCB is properly secured to the chassis.
Use proper shielding, grounding, and layout techniques to minimize EMI and RFI. Ensure the relay module is placed away from sensitive components, and use a metal shield or enclosure if necessary. Follow good PCB design practices, such as using a solid ground plane and minimizing signal loop areas.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXS2SA-L2-24V Overview

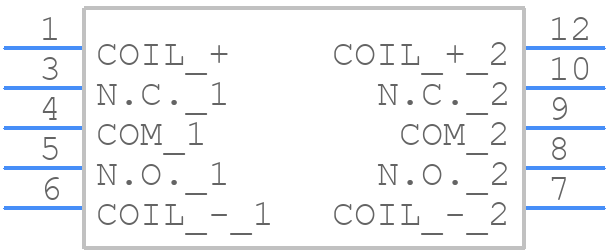

Use the download button to access the TXS2SA-L2-24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXS2S,
or try a keyword search, such as Power/Signal Relays
