Panasonic recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
To ensure reliability in high-temperature applications, it's essential to follow Panasonic's recommended operating temperature range (-40°C to 125°C) and derate the voltage and current according to the temperature coefficient. Additionally, ensure proper thermal management, such as using a heat sink or thermal interface material, to keep the junction temperature within the recommended range.
Panasonic recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/s or less. It's also essential to follow the IPC-J-STD-020 standard for soldering electronic components.
Yes, the TXS2SA-LT-4.5V-1-Z is designed to withstand vibrations up to 10G (10 Hz to 2 kHz). However, it's essential to ensure proper mounting and securing of the component to the PCB to prevent mechanical stress and damage.
To troubleshoot issues with the TXS2SA-LT-4.5V-1-Z, start by checking the power supply voltage, current, and temperature. Verify that the component is properly soldered and mounted to the PCB. Use oscilloscopes and logic analyzers to debug signal integrity issues. If the issue persists, consult Panasonic's application notes and technical support resources.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXS2SA-LT-4.5V-1-Z Overview

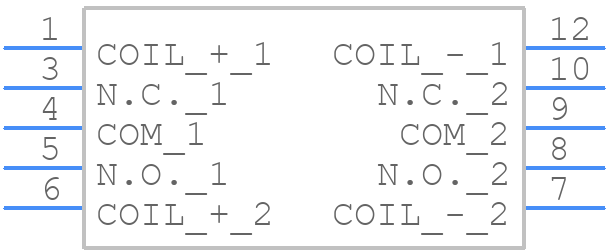

Use the download button to access the TXS2SA-LT-4.5V-1-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXS2S,
or try a keyword search, such as Power/Signal Relays
