Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the device is placed near the connector to reduce signal loss.
The TXU0102DTTR requires a specific power sequencing to prevent damage. Ensure that VCC is applied before VBUS, and VBUS is removed before VCC. A power sequencing circuit or a dedicated power management IC can be used to ensure proper sequencing.
The maximum cable length supported by the TXU0102DTTR depends on the specific application and the type of cable used. As a general guideline, the device supports cable lengths up to 3 meters for USB 2.0 and 1 meter for USB 3.2 Gen 1. However, it's recommended to consult the USB specification and perform signal integrity analysis for longer cable lengths.
The TXU0102DTTR has an internal overcurrent protection (OCP) feature that can be enabled through the OCPEN pin. Additionally, an external OCP circuit can be implemented using a dedicated OCP IC or a power switch with OCP functionality. Ensure that the OCP threshold is set according to the specific application requirements.
The TXU0102DTTR has a maximum junction temperature of 125°C. Ensure that the device is mounted on a PCB with a solid ground plane and that the thermal vias are connected to a heat sink or a metal plate. Additionally, consider using thermal interface materials and follow good thermal design practices to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXU0102DTTR Overview

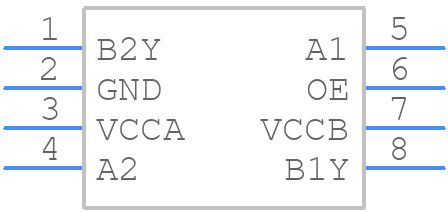

Use the download button to access the TXU0102DTTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXU01,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
