Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for signal routing, decoupling, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it is essential to follow the recommended operating conditions, including the maximum junction temperature (TJ) of 125°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within the recommended operating temperature range.
The TXU0102QDCURQ1 has built-in electrostatic discharge (ESD) protection, but it is still important to follow proper ESD handling procedures during assembly and testing to prevent damage. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device from ESD events.
To troubleshoot issues with the TXU0102QDCURQ1, start by reviewing the datasheet and application notes to ensure that the device is being used within the recommended operating conditions. Then, use debugging tools, such as logic analyzers or oscilloscopes, to analyze the device's behavior and identify the root cause of the issue. Texas Instruments also provides technical support resources, including forums and support tickets, to help resolve issues.
When using the TXU0102QDCURQ1 in automotive or industrial applications, consider the device's operating temperature range, voltage tolerance, and electromagnetic compatibility (EMC). Additionally, ensure that the device meets the relevant industry standards, such as AEC-Q100 for automotive applications, and follow the recommended design and testing guidelines to ensure reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXU0102QDCURQ1 Overview

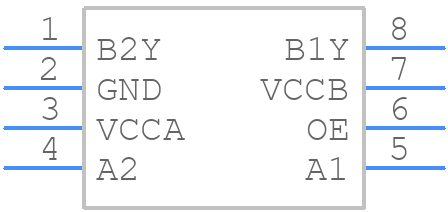

Use the download button to access the TXU0102QDCURQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXU01,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
