For optimal performance, it is recommended to follow the PCB layout and routing guidelines provided in the Texas Instruments application note 'PCB Layout Guidelines for High-Speed USB' (SLVA466). This includes using a solid ground plane, minimizing trace lengths, and avoiding vias and stubs near the high-speed signals.
To ensure signal integrity and minimize EMI emissions, it is recommended to use a shielded cable, keep the signal traces away from the edge of the PCB, and use a common mode filter or ferrite bead on the USB lines. Additionally, ensure that the PCB is properly grounded and that there are no gaps in the ground plane.
The maximum cable length supported by the TXU0102QDTTRQ1 is dependent on the specific application and the type of cable used. However, as a general guideline, the USB 2.0 specification recommends a maximum cable length of 3 meters (10 feet) for high-speed devices. Longer cable lengths may be possible with the use of active cables or repeaters.
The TXU0102QDTTRQ1 has a built-in low-power mode that can be enabled by setting the SUSPEND pin low. Additionally, the device can be configured to enter a low-power state during idle periods by using the USB 2.0 suspend and resume mechanisms. Refer to the datasheet and application notes for more information on low-power operation.
The TXU0102QDTTRQ1 has a maximum junction temperature of 125°C. To ensure reliable operation, it is recommended to keep the device temperature below 85°C. This can be achieved by using a heat sink, ensuring good airflow, and minimizing power consumption. Refer to the datasheet and application notes for more information on thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXU0102QDTTRQ1 Overview

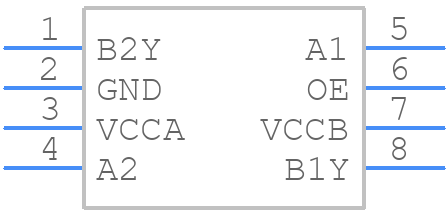

Use the download button to access the TXU0102QDTTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXU01,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
