A good PCB layout for the TXU0104BQAR involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
To ensure signal integrity and minimize EMI emissions, use a controlled impedance PCB design, add series termination resistors, and use shielding or guard traces to reduce radiation. Additionally, follow TI's guidelines for signal routing and layout.
The TXU0104BQAR has a maximum junction temperature of 150°C. Ensure reliable operation by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. TI provides thermal management guidelines in the datasheet and application notes.
The TXU0104BQAR is a high-reliability device, but it's essential to review TI's documentation and certifications (e.g., AEC-Q100, IATF 16949) to ensure it meets the specific requirements of your application. Consult with TI's support team for guidance on using the device in safety-critical applications.
To troubleshoot issues with the TXU0104BQAR, start by reviewing the datasheet and application notes, then use oscilloscopes and logic analyzers to debug the signal paths. Common failure modes include overvoltage, undervoltage, and overheating. Consult TI's support resources and application notes for guidance on troubleshooting and failure analysis.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXU0104BQAR Overview

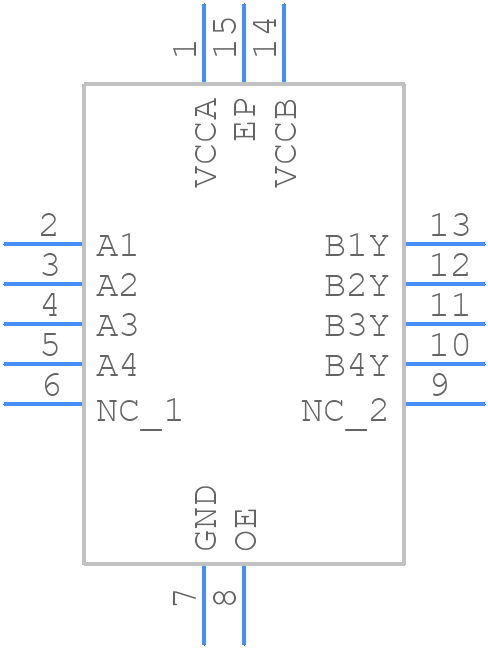

Use the download button to access the TXU0104BQAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXU01,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
