A good PCB layout for the TXU0104QPWRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the TXU0104QPWRQ1 output voltage, it is essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be within the recommended range, and the device should be operated within its specified temperature range.
The TXU0104QPWRQ1 can handle input voltages up to 5.5V, but it is recommended to operate the device within the specified input voltage range of 2.3V to 5.5V for optimal performance and reliability.
The TXU0104QPWRQ1 is rated for operation up to 125°C, but it is essential to ensure that the device is operated within its specified temperature range and that the junction temperature is kept below 150°C to ensure reliability and prevent thermal shutdown.
To troubleshoot issues with the TXU0104QPWRQ1, start by verifying that the input voltage is within the specified range, and that the output capacitor is properly connected and of the recommended value. Check for any signs of overheating, and ensure that the device is operated within its specified temperature range. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXU0104QPWRQ1 Overview

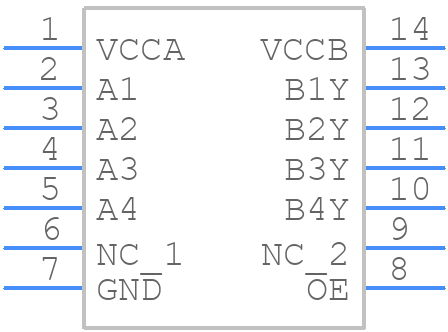

Use the download button to access the TXU0104QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXU01,
or try a keyword search, such as Level Translators
