TXV0106BQBR - Texas Instruments

Description: Voltage Level Translator Unidirectional 1 Circuit 6 Channel 500Mbps 16-WQFN (2.5x3.5)

Download TXV0106BQBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

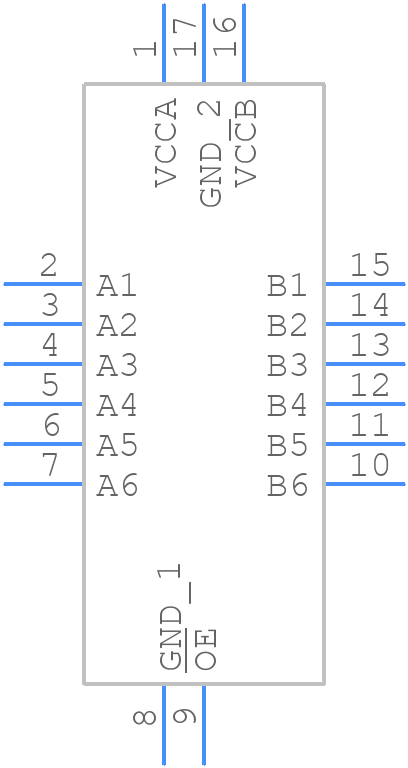

TXV0106BQBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TXV0106BQBR - Texas Instruments PCB footprint - Other - Other - TXV0106BQBR-1
click to zoom
3D Models
TXV0106BQBR - Texas Instruments - 3D model - Other - TXV0106BQBR-1
click to zoom

TXV0106BQBR Details

  • Manufacturer Part Number:

    TXV0106BQBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Delay-Max:

    2.3 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Latch or Register:

    LATCH

  • Output Low Current-Max:

    0.012 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.1X.14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TXV0106BQBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements. Texas Instruments recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The application note SLVAE04 provides more detailed guidance on capacitor selection.
  • The TXV0106BQBR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure proper thermal management and consider the application's specific temperature requirements.
  • The TXV0106BQBR is a surface-mount device and can be susceptible to vibration-induced failures. Texas Instruments recommends following proper mounting and soldering techniques to ensure the device's reliability in high-vibration environments. Additional mechanical support or potting may be necessary in extreme cases.
  • Texas Instruments provides a troubleshooting guide in the application note SLVAE04, which covers common issues and their potential causes. Additionally, engineers can use tools like oscilloscopes and thermal cameras to diagnose and debug issues with the TXV0106BQBR.
