Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance and capacitance.
The device's operating temperature range is -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and avoiding hot spots on the board.
Although the datasheet specifies a maximum input voltage of 6.5V, it's recommended to limit the input voltage to 5.5V to ensure reliable operation and prevent damage to the device.
Yes, the TXV0106QWBQBRQ1 is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, ensure that your design meets the specific requirements of the target application, including environmental and testing standards.
Start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXV0106QWBQBRQ1 Overview

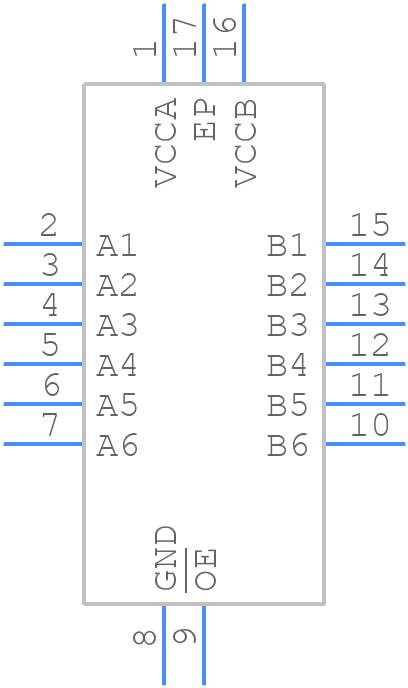

Use the download button to access the TXV0106QWBQBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXV01,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
