Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for high-speed PCB design, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
The TXV0108QWRGYRQ1 has a maximum junction temperature of 125°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet.
The recommended power-up sequence is to apply VCC first, followed by VREF, and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
Start by checking the power supply and input signals, then verify that the device is properly configured and that the output signals are correct. Use oscilloscopes or logic analyzers to debug the issue, and consult the datasheet and application notes for guidance.
The TXV0108QWRGYRQ1 is not specifically designed for radiation-hardened or high-reliability applications. However, Texas Instruments offers other devices that are designed for these types of applications, such as the RH108 and HI-REL series.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXV0108QWRGYRQ1 Overview

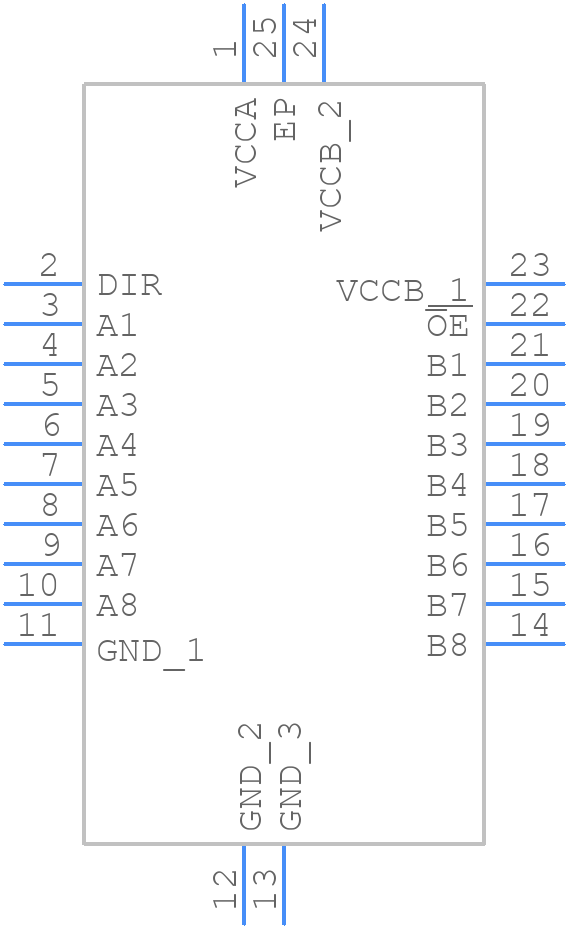

Use the download button to access the TXV0108QWRGYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXV01,
or try a keyword search, such as Level Translators
