TXV0108RGYR - Texas Instruments

Description: Voltage Level Translator Unidirectional 1 Circuit 8 Channel 500Mbps 24-VQFN (3.5x5.5)

Download TXV0108RGYR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

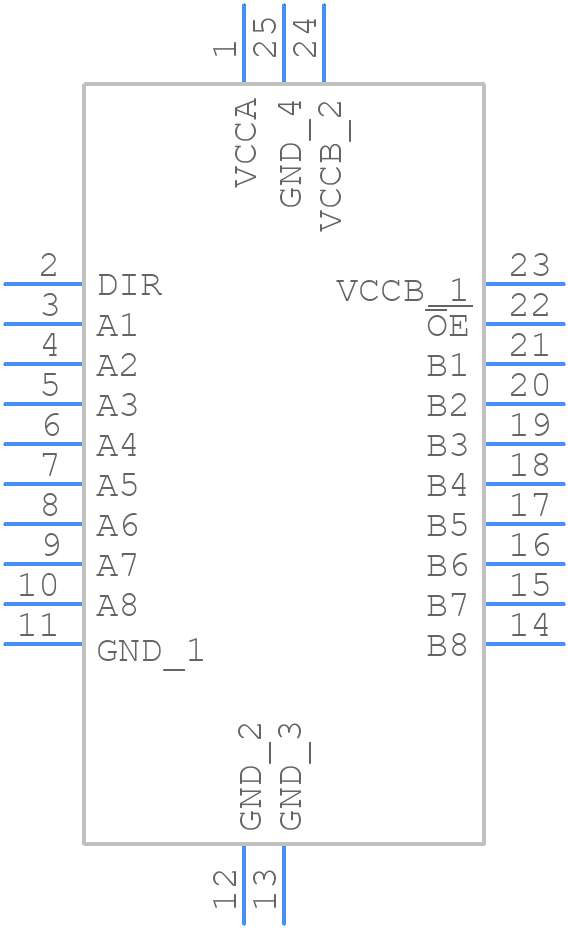

TXV0108RGYR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TXV0108RGYR - Texas Instruments PCB footprint - Other - Other - RGY0024F_2024
click to zoom
3D Models
TXV0108RGYR - Texas Instruments - 3D model - Other - RGY0024F_2024
click to zoom

TXV0108RGYR Details

  • Manufacturer Part Number:

    TXV0108RGYR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO HAS 1.65 TO 3.6V SUPPLY VOLTAGE 2

  • Delay-Max:

    2.3 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Latch or Register:

    LATCH

  • Output Low Current-Max:

    0.012 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.14X.21,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TXV0108RGYR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode filter on the input lines to reduce noise.
  • The TXV0108RGYR requires a clean and stable power supply. It's recommended to use a low-ESR capacitor (e.g. 10uF) as close as possible to the device, and to decouple the power pins with a 1uF capacitor. Additionally, ensure the power supply can provide the required current.
  • The TXV0108RGYR is rated for operation from -40°C to 125°C. However, it's recommended to derate the device's performance at temperatures above 85°C.
  • Start by verifying the power supply and decoupling. Check for proper termination and signal integrity. Use an oscilloscope to verify the input and output signals. If issues persist, consult the Texas Instruments support resources or contact their technical support team.
  • Yes, the TXV0108RGYR is compatible with lead-free soldering processes. However, it's recommended to follow the recommended soldering profile and temperature guidelines to ensure reliable operation.
