UA748CN - STMicroelectronics

Description: PRECISION SINGLE OPERATIONAL AMPLIFIER

Download UA748CN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

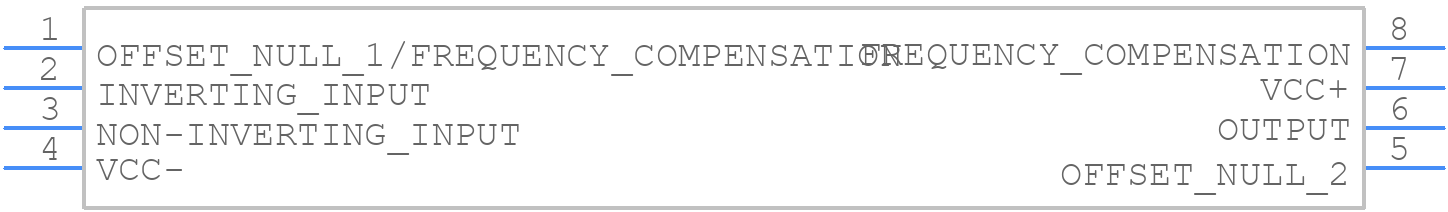

UA748CN - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
UA748CN - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom
3D Models
UA748CN - STMicroelectronics - 3D model - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom

UA748CN Details

  • Manufacturer Part Number:

    UA748CN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    96 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.8 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    8

  • Number of Terminals:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Slew Rate-Min:

    0.25 V/us

  • Slew Rate-Nom:

    0.5 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    7.62 mm

UA748CN Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the UA748CN is 500mW, which is relatively low. This means that the device is not suitable for high-power applications.
  • To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in parallel with the feedback resistor to reduce the gain-bandwidth product. Additionally, selecting the correct values for the resistors and capacitors in the feedback network is crucial.
  • The input impedance of the UA748CN is relatively high, around 2MΩ. This means that the device can be used with high-impedance sources without significant signal attenuation. However, it's essential to consider the input impedance when designing the input stage of your circuit to ensure proper signal transmission.
  • Yes, the UA748CN can be used as a comparator, but it's not the most suitable device for this purpose. The UA748CN is an op-amp, and its output stage is not optimized for comparator applications. However, if you still want to use it as a comparator, you can connect the output to a pull-up resistor and a diode to create a simple comparator circuit.
  • The UA748CN has a limited bandwidth of around 1.1MHz. To handle high-frequency applications, you can use a different op-amp with a higher bandwidth or implement a filter circuit to reduce the frequency response. Alternatively, you can use the UA748CN in a non-inverting amplifier configuration to improve the bandwidth.
