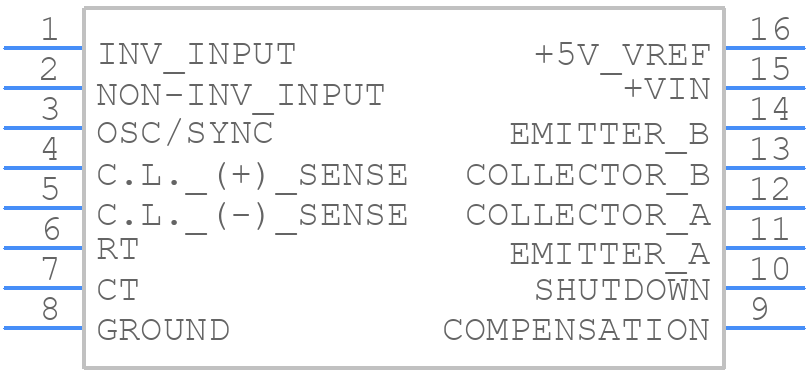

UC1524AJ883B - Texas Instruments

UC1524AJ883B Details

• Manufacturer Part Number:

  UC1524AJ883B

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  1 V

• Input Voltage-Nom:

  20 V

• JESD-30 Code:

  R-CDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.56 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  0.2 A

• Output Voltage-Max:

  5.05 V

• Output Voltage-Min:

  4.95 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883 Class B

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  8 V

• Surface Mount:

  NO

• Switcher Configuration:

  PUSH-PULL

• Switching Frequency-Max:

  500 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
