A good PCB layout for the UC1525AJ883B involves keeping the input and output stages separate, using a star-ground configuration, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
To ensure the UC1525AJ883B operates within its SOA, monitor the input voltage, output current, and junction temperature. Use the datasheet's SOA curves to determine the maximum allowable output current and voltage. Implement overcurrent protection and thermal monitoring to prevent damage.
When selecting output filter components, consider the desired output ripple, load impedance, and switching frequency. Choose inductors with low DC resistance and high saturation current, and capacitors with low ESR and high ripple current rating. TI provides guidelines for component selection in the datasheet and application notes.
To synchronize the UC1525AJ883B with an external clock signal, connect the clock signal to the SYNC pin. Ensure the clock signal meets the UC1525AJ883B's synchronization requirements, including frequency, duty cycle, and amplitude. Consult the datasheet for specific synchronization guidelines.
To manage thermal performance, ensure good heat sinking, use a thermally conductive PCB material, and consider using a heat sink or thermal interface material. Monitor the junction temperature and implement thermal shutdown or warning mechanisms to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1525AJ883B Overview

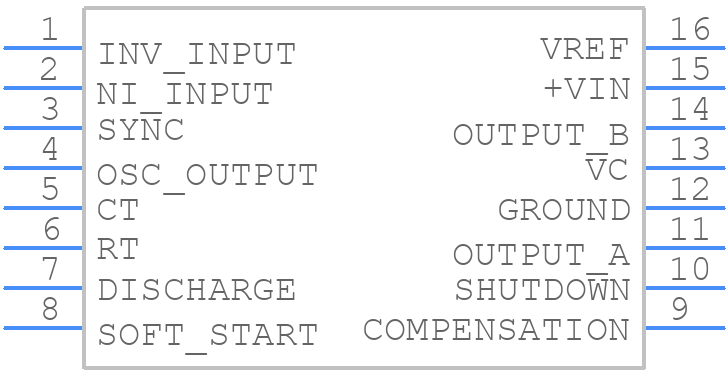

Use the download button to access the UC1525AJ883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC152,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
