The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help reduce input ripple and improve stability.
To ensure the UC1525BJ operates within its SOA, ensure that the input voltage, output current, and power dissipation are within the recommended limits. Also, provide adequate heat sinking and thermal management to prevent overheating.
The soft-start pin (SS) is used to control the output voltage rise time during startup. By connecting a capacitor from the SS pin to ground, the output voltage rise time can be slowed down to prevent inrush currents and reduce electromagnetic interference (EMI).
While the UC1525BJ is a reliable device, it is not specifically designed for high-reliability or aerospace applications. For such applications, it is recommended to use devices that are specifically qualified for those markets, such as the UC1525BQ or other radiation-hardened devices.
To troubleshoot oscillations or instability issues, check the input and output voltage waveforms using an oscilloscope. Ensure that the input voltage is stable, and the output filter components are properly selected. Also, verify that the device is properly heat-sunk and that the thermal management is adequate.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1525BJ Overview

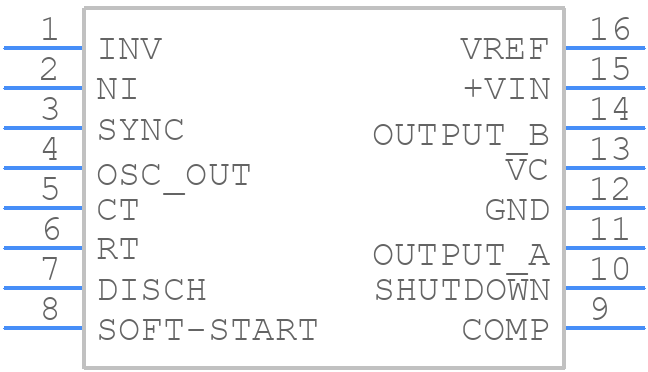

Use the download button to access the UC1525BJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC152,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
