A good PCB layout for the UC1526AJ883B involves keeping the input and output stages separate, using a star-ground configuration, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor is properly sized. Also, check that the input voltage is within the recommended range and the output is properly loaded.
The UC1526AJ883B can deliver up to 3A of output current, but this depends on the input voltage, output voltage, and thermal considerations. Be sure to check the datasheet for specific current limits and thermal derating.
The UC1526AJ883B is rated for operation up to 125°C, but thermal derating applies. Be sure to check the datasheet for thermal derating curves and ensure proper heat sinking and airflow to prevent overheating.
To troubleshoot issues, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or ringing. Verify the PCB layout and component values match the recommended design. Consult the datasheet and application notes for troubleshooting guides.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1526AJ883B Overview

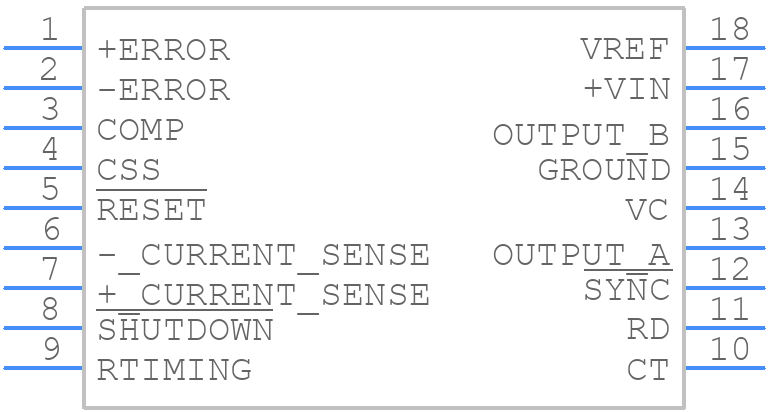

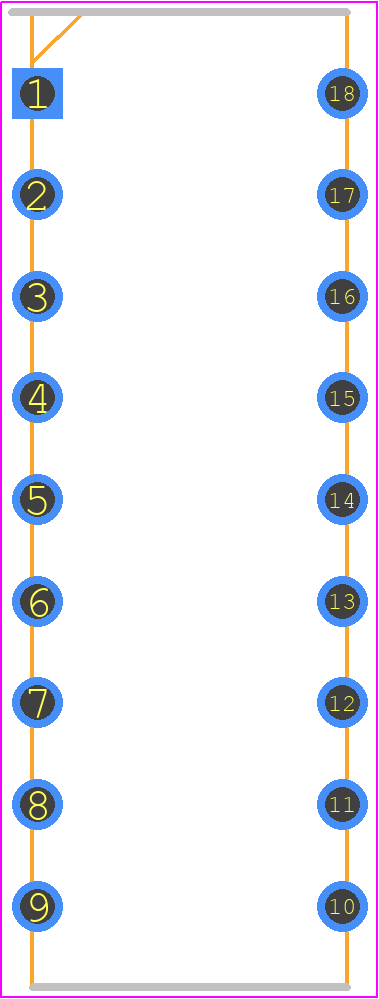

Use the download button to access the UC1526AJ883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC152,
or try a keyword search, such as Switching Regulator or Controllers
