Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the switching node (pin 3) as short as possible. Additionally, it's recommended to use a common mode choke and a shielded inductor to reduce EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout. Also, ensure that the input voltage is within the recommended range, and that the output capacitor is properly sized. Additionally, adding a small resistor (e.g. 1kΩ) in series with the output capacitor can help to dampen oscillations.
The UC1708JE is rated for operation from -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and ensure proper thermal management for high-temperature applications.
While the UC1708JE is a reliable device, it's not specifically designed for high-reliability or automotive applications. For such applications, it's recommended to use devices that are specifically qualified for those markets, such as the UC1708JQML or UC1708JT, which have undergone additional testing and qualification.
To troubleshoot issues with the UC1708JE, start by verifying the input voltage, output voltage, and component values. Check for proper PCB layout and component placement. Use an oscilloscope to monitor the switching node and output voltage. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1708JE Overview

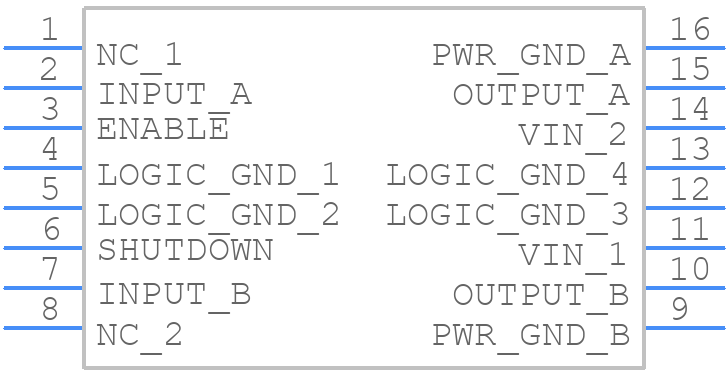

Use the download button to access the UC1708JE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC170,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
