UC1846J883B - Texas Instruments

Description: Current Mode PWM Controller 500mA 500kHz 16-Pin CDIP Tube

Download UC1846J883B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

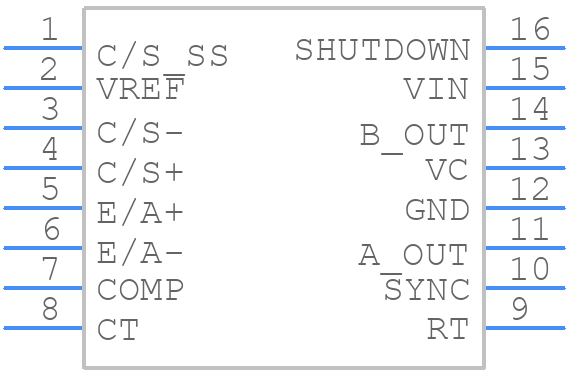

Symbol
UC1846J883B - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC1846J883B - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J(R-GDIP-T16)
click to zoom
3D Models
UC1846J883B - Texas Instruments - 3D model - Ceramic Dual-In-Line Packages - J(R-GDIP-T16)
click to zoom

UC1846J883B Details

  • Manufacturer Part Number:

    UC1846J883B

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-CDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    21.34 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

UC1846J883B Frequently Asked Questions (FAQs)

  • A good PCB layout for the UC1846J883B involves keeping the input and output stages separate, using a star-ground configuration, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value based on the switching frequency and output voltage. TI provides inductor selection guidelines in the datasheet and application notes.
  • The UC1846J883B is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal design guidelines for more information.
  • Yes, the UC1846J883B can be used in a synchronous rectification topology, but it requires additional circuitry and design considerations. Consult TI's application notes and design guides for more information.
  • Follow the recommended biasing and configuration guidelines in the datasheet and application notes. Ensure the input voltage, output voltage, and feedback resistors are correctly set, and the device is properly compensated for stability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC1846J883B Overview

Use the download button to access the UC1846J883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC184, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
