Texas Instruments recommends a compact layout with the UC1856J placed close to the power source, with the input and output capacitors placed as close as possible to the device. A ground plane is also recommended to reduce noise and EMI. Additionally, the device should be placed away from high-frequency components and cables.
The UC1856J requires a proper bias voltage and configuration to operate correctly. Engineers should refer to the application notes and design guides provided by Texas Instruments, which provide detailed information on biasing and configuration for specific applications, such as flyback converters and forward converters.
The UC1856J has a maximum junction temperature of 150°C. Engineers should ensure good thermal conductivity between the device and the PCB, and consider using thermal vias, heat sinks, or thermal interfaces to dissipate heat. They should also monitor the device's temperature and adjust the design accordingly to prevent overheating.
To troubleshoot issues with the UC1856J, engineers should first consult the datasheet and application notes to ensure the device is properly biased and configured. They should then use oscilloscopes and other diagnostic tools to identify the source of the issue, and consider consulting with Texas Instruments' technical support or online forums for guidance.
Yes, engineers should consider the UC1856J's reliability and safety features, such as its built-in overvoltage protection and undervoltage lockout. They should also ensure the device is properly derated and margined to account for variations in temperature, voltage, and other environmental factors. Additionally, they should consult with Texas Instruments' technical support and relevant industry standards to ensure the device meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1856J Overview

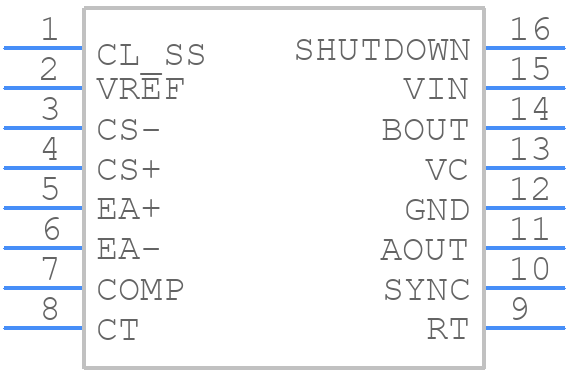

Use the download button to access the UC1856J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC185,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
