UC1875JQMLV - Texas Instruments

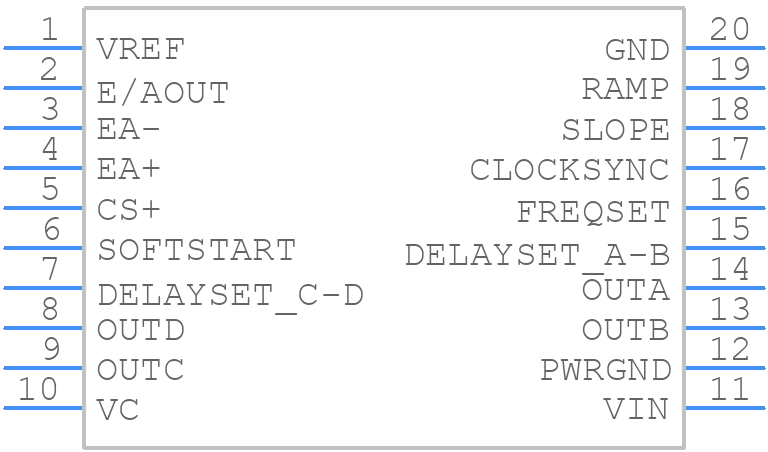

UC1875JQMLV Details

• Manufacturer Part Number:

  UC1875JQMLV

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  HERMETIC SEALED, CERAMIC, DIP-20

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  CAN ALSO BE CONFIGURED IN CURRENT MODE

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  RESONANT CONTROL

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  11 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-GDIP-T20

• Length:

  24.195 mm

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  3 A

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  LCC28,.45SQ

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38535 Class V

• Seated Height-Max:

  5.08 mm

• Supply Current-Max (Isup):

  44 mA

• Surface Mount:

  NO

• Switcher Configuration:

  PHASE-SHIFT

• Switching Frequency-Max:

  2000 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
