The UC2524AJ is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias under the device. A solid ground plane and decoupling capacitors are also essential.
To ensure stability, make sure to follow the recommended compensation network, and choose the correct values for the compensation components (R1, R2, C1, and C2). Also, ensure that the output voltage is within the specified range, and the input voltage is within the recommended operating range.
The UC2524AJ can deliver up to 1A of output current, but this is dependent on the input voltage, output voltage, and the thermal conditions. It's essential to check the thermal derating curves and ensure that the device is properly heatsinked to maintain reliability.
Yes, the UC2524AJ is designed for switching regulator applications. However, it's essential to ensure that the device is properly configured, and the switching frequency is within the recommended range (typically between 20 kHz to 100 kHz).
To troubleshoot issues, start by checking the power supply, output voltage, and input voltage. Verify that the compensation network is correct, and the device is properly heatsinked. Use an oscilloscope to check for oscillations, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2524AJ Overview

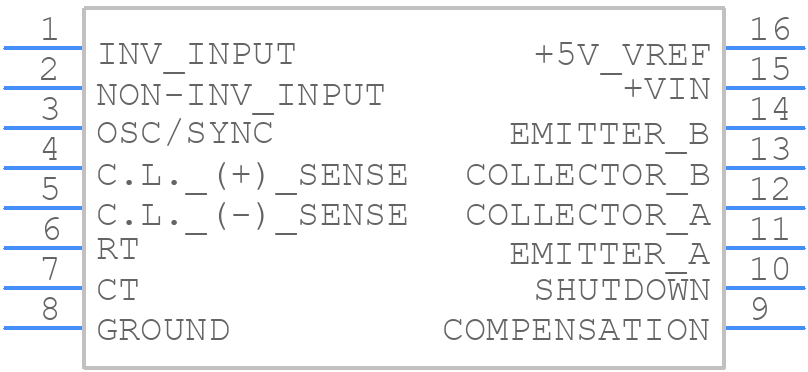

Use the download button to access the UC2524AJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252,
or try a keyword search, such as Switching Regulator or Controllers
