TI recommends a compact layout with minimal trace lengths, using a solid ground plane, and placing the IC close to the input capacitors. Additionally, use a shielded inductor and keep the feedback trace short and away from noisy signals.
Verify that the input voltage is within the recommended range (7.5V to 40V), and the output voltage is within the specified range (1.25V to 37V). Also, ensure the IC is operated within the recommended temperature range (-40°C to 125°C).
Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 10uH to 22uH). Ensure the inductor is shielded to minimize EMI and is compatible with the IC's switching frequency.
Use the recommended compensation network values (R1, R2, C1, and C2) from the datasheet. Adjust these values based on the specific application requirements, such as output voltage and load current. Verify stability using Bode plots or simulation tools.
Ensure good thermal conduction between the IC and the PCB. Use a thermal pad or a heat sink if necessary. Keep the IC away from heat sources, and ensure good airflow. Monitor the junction temperature (TJ) and ensure it remains below the maximum rating (150°C).
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UC2524AN Overview

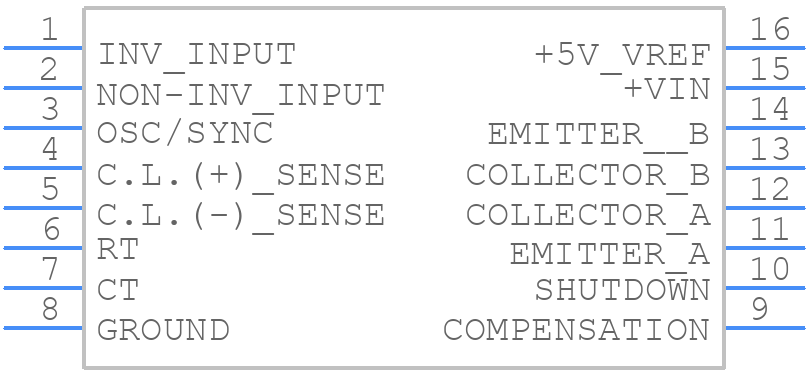

Use the download button to access the UC2524AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
