Texas Instruments recommends a compact layout with the UC2524N placed close to the input capacitors and the output inductor. The input and output pins should be routed away from each other to minimize coupling. Additionally, a solid ground plane and a low-ESR output capacitor are recommended to reduce noise and EMI.
To ensure stability, the UC2524N requires a minimum ESR output capacitor, a properly sized output inductor, and a stable input voltage. Additionally, the feedback loop should be properly compensated, and the device should be operated within its recommended operating conditions. Texas Instruments provides a stability analysis tool to help designers ensure the UC2524N is stable in their specific application.
The UC2524N can deliver up to 4A of output current, but this is dependent on the input voltage, output voltage, and the device's thermal conditions. The maximum output current is limited by the device's thermal rating and the maximum allowed junction temperature. Designers should ensure the device is operated within its recommended operating conditions to avoid overheating and damage.
To protect the UC2524N from input voltage transients and surges, designers can use a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. Additionally, a fuse or a current limiter can be used to prevent overcurrent conditions. The input capacitor should also be rated for the maximum expected input voltage and should be placed close to the UC2524N to minimize inductance and reduce voltage spikes.
The recommended input capacitor type for the UC2524N is a low-ESR ceramic or film capacitor with a value of 10uF to 22uF. The input capacitor should be rated for the maximum expected input voltage and should be placed close to the UC2524N to minimize inductance and reduce voltage spikes. A larger input capacitor value can help to reduce input voltage ripple and improve the device's overall performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2524N Overview

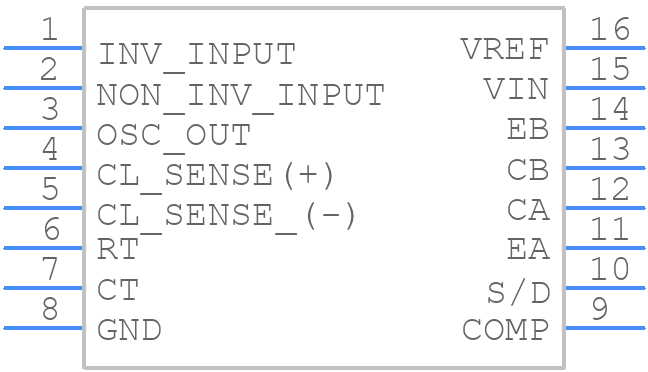

Use the download button to access the UC2524N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
