UC2525ADWTR - Texas Instruments

Description: Regulating Pulse Width Modulators

Download UC2525ADWTR Model

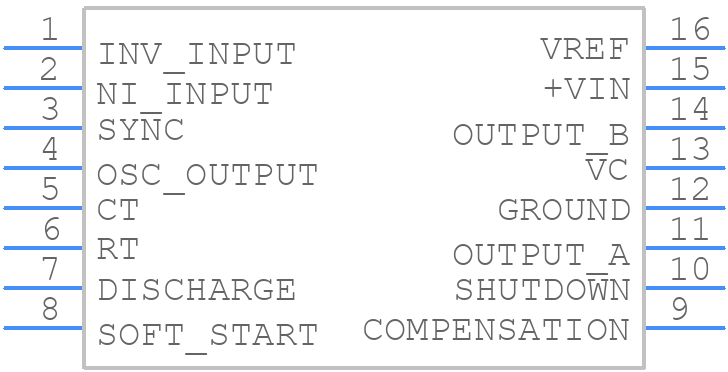

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UC2525ADWTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
UC2525ADWTR - Texas Instruments  - 3D model - Small Outline Packages - DW0016A
click to zoom

UC2525ADWTR Details

  • Manufacturer Part Number:

    UC2525ADWTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    5.15 V

  • Output Voltage-Min:

    5.05 V

  • Output Voltage-Nom:

    5.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

UC2525ADWTR Frequently Asked Questions (FAQs)

  • The UC2525ADWTR is a high-frequency device, and proper layout and placement are crucial. TI recommends a 4-layer PCB with a solid ground plane, and the device should be placed close to the input capacitors. Additionally, the output inductor should be placed as close as possible to the device.
  • To ensure the UC2525ADWTR operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Also, ensure the device is operated within the recommended temperature range (-40°C to 125°C) and that the thermal design is adequate to prevent overheating.
  • When selecting the output inductor, consider the inductor's saturation current, DC resistance, and core material. The inductor should be able to handle the peak current, and its DC resistance should be low to minimize power loss. TI recommends using a shielded inductor with a ferrite or iron powder core.
  • To optimize the compensation network, use the TI-provided compensation calculator or follow the guidelines in the datasheet. The compensation network should be designed to ensure stability and optimal transient response. The values of the compensation components (R1, R2, C1, and C2) depend on the output voltage, output current, and switching frequency.
  • Common pitfalls to avoid include inadequate thermal design, poor PCB layout, and incorrect compensation network design. Additionally, ensure the input capacitors are properly selected and placed, and the output inductor is properly selected and sized.
