Texas Instruments recommends a compact layout with the UC2525AJ placed close to the input capacitors and output inductors. The input and output pins should be routed away from each other to minimize coupling. Additionally, a solid ground plane and a low-ESR output capacitor are recommended to reduce noise and EMI.
To ensure stability, the UC2525AJ requires a minimum ESR output capacitor, and the output inductor should be selected to provide a minimum of 20% ripple current. Additionally, the input voltage should be well-regulated, and the input capacitors should be selected to provide a low impedance path to ground. A stability analysis using the TI WEBENCH tool or a similar simulation tool can also help identify potential stability issues.
The UC2525AJ is rated for operation from -40°C to 85°C ambient temperature range. However, the device's internal temperature should not exceed 150°C to ensure reliable operation and prevent thermal shutdown.
Yes, the UC2525AJ is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using a high-reliability process. However, additional testing and validation may be required to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the UC2525AJ, start by verifying the input voltage, output voltage, and current. Check the layout and placement of the device and surrounding components to ensure they meet the recommended guidelines. Use an oscilloscope to measure the output voltage ripple and switching frequency. If the issue persists, consult the TI application notes and technical documentation for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2525AJ Overview

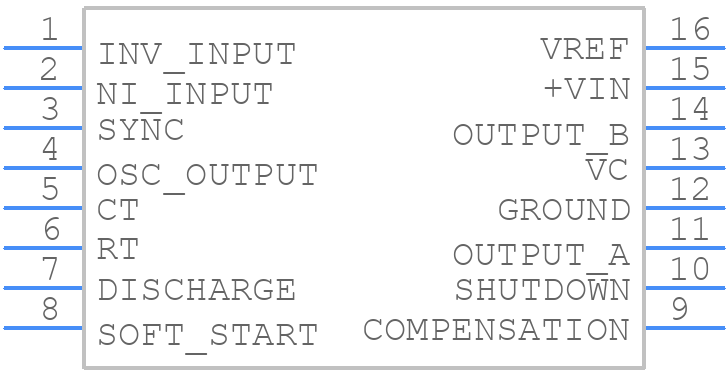

Use the download button to access the UC2525AJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
