Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
To ensure reliable startup, make sure the input voltage rises slowly (typically 10-20 ms) and monotonically, and that the input voltage is within the recommended range. Also, ensure that the output voltage is properly decoupled with capacitors and that the feedback network is properly designed.
The UC2525ANG4 is capable of delivering up to 5A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific current limits and thermal derating curves.
Optimizing the feedback network involves selecting the correct resistors and capacitors to achieve the desired output voltage and stability. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements and measured performance.
The UC2525ANG4 has a maximum junction temperature of 150°C, and thermal derating is required above 25°C. Be sure to provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2525ANG4 Overview

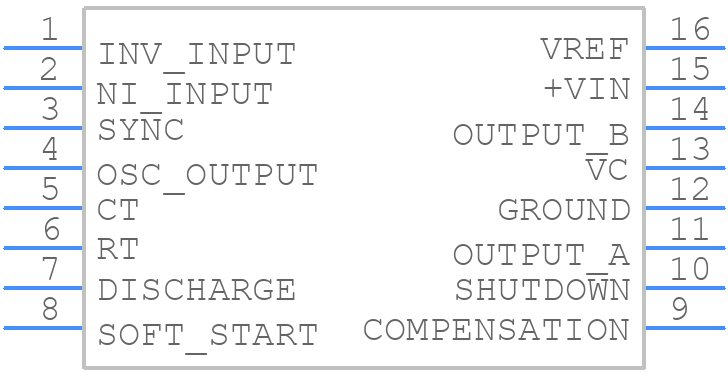

Use the download button to access the UC2525ANG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
