A good PCB layout for the UC2525BDW involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
To ensure the UC2525BDW operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
A recommended input filter configuration for the UC2525BDW is a pi-filter (L-C-R) or a T-filter (L-C-L) with a cutoff frequency of around 10-20 kHz to reduce input noise and ripple.
To troubleshoot oscillations or instability issues with the UC2525BDW, check the PCB layout, ensure proper decoupling, and verify the input and output filter configurations. Also, check for any parasitic inductance or capacitance in the circuit and ensure the component values are within the recommended range.
A recommended thermal management strategy for the UC2525BDW involves using a heat sink with a thermal resistance of around 10-20°C/W, ensuring good airflow, and keeping the ambient temperature below 50°C. Additionally, using thermal interface materials and ensuring good thermal contact between the IC and heat sink can help reduce thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2525BDW Overview

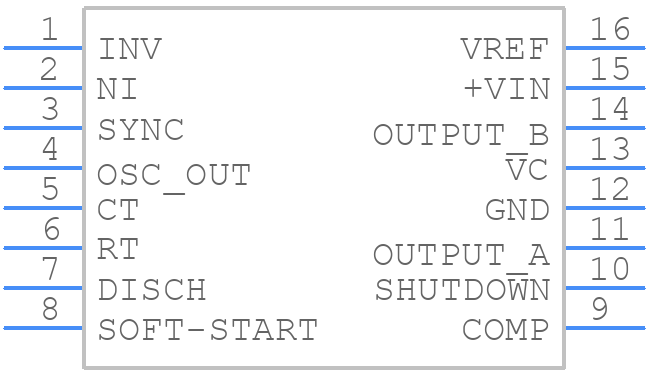

Use the download button to access the UC2525BDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
