The UC2526AQ is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias under the device. A solid ground plane and a low-ESR capacitor are also recommended.
To ensure stability, make sure to follow the recommended component values and layout guidelines. Also, ensure that the output voltage is within the specified range, and the input voltage is within the recommended operating range. Additionally, adding a small capacitor (e.g., 10nF) between the output and ground can help to reduce oscillations.
The UC2526AQ can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to check the datasheet's thermal derating curves to ensure the device can handle the required output current in your specific application.
The UC2526AQ is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to check the datasheet's thermal derating curves and ensure that the device is properly heatsinked to maintain a safe operating temperature.
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the component values and layout meet the recommended specifications. Check for any signs of overheating, and ensure that the device is properly heatsinked. If the issue persists, consult the datasheet's troubleshooting section or contact TI's support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2526AQ Overview

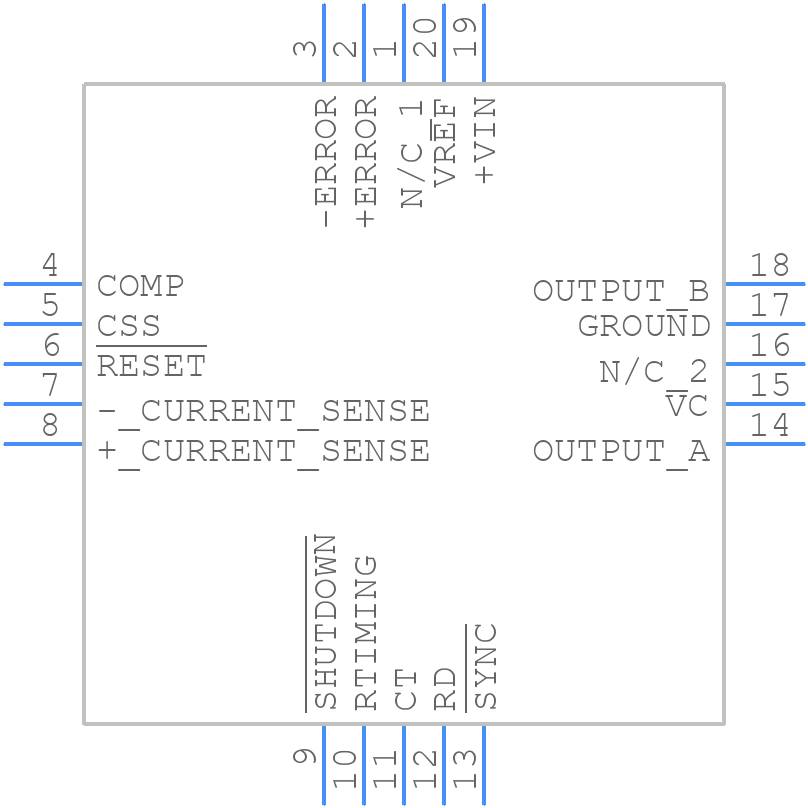

Use the download button to access the UC2526AQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
