UC2572DTR - Texas Instruments

Description: Negative Output Flyback Pulse Width Modulator

Download UC2572DTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

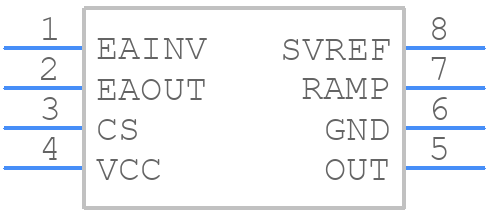

Symbol
UC2572DTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC2572DTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
UC2572DTR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

UC2572DTR Details

  • Manufacturer Part Number:

    UC2572DTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    4.2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Output Voltage-Max:

    -1 V

  • Output Voltage-Min:

    -70 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    15 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    INVERTER

  • Switching Frequency-Max:

    200 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UC2572DTR Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the UC2572DTR. Ensure a solid ground plane, keep the input and output traces separate, and use a star-configuration for the power supply. TI provides a recommended layout in the datasheet and application notes.
  • Select capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For the input capacitor, choose a value between 1-10uF, and for the output capacitor, choose a value between 10-100uF. Consult the datasheet and application notes for specific recommendations.
  • The UC2572DTR is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure a safe operating margin.
  • Use a heat sink with a thermal resistance of 10°C/W or lower. Ensure good thermal contact between the device and heat sink. Keep the device away from other heat sources, and provide adequate airflow to prevent thermal buildup.
  • Use a shielded enclosure, keep the input and output cables separate, and use EMI filters or common-mode chokes to reduce emissions. Ensure the PCB layout is optimized for EMI reduction, and follow TI's application notes for EMI compliance.
